Oracle Datasource Integration

Knowi enables visualization, warehousing and reporting automation from Oracle along with other structured and unstructured datasources.

Overview

  1. Connect, extract and transform data from your Oracle database, using one of the following options::

    a. Through our UI to connect directly.

    b. Using our Cloud9Agent. This can securely pull data inside your network. See agent configuration for more details.

  2. Visualize and Automate your Reporting instantly.

UI Based Approach

Connecting

  1. Log in to Knowi and select Queries from the left sidebar.

  2. Click on New Datasource + button and select Oracle from the list of datasources.

  3. After navigating to the New Datasource page, either use the pre-configured settings into Cloud9 Chart's own demo Oracle database or follow the prompts and configure the following details to set up connectivity to your own Oracle database:
    a. Datasource Name: Enter a name for your datasource
    b. Host Name: Enter the host name to connect to
    c. Port: Enter the database port
    d. SID or Service Name: Enter the connection string to connect to database instance
    e. Schema Name: Enter the name of the schema
    f. User ID: Enter the User ID to connect
    g. Password: Enter the password to connect to the database
    h. Database Properties: Additional database connection properties.

  4. Establish Network connectivity and click on the Test Connection button.

    Note: The connection validity of the network can be tested only if it has been established via Direct Connectivity or an SSH tunnel. For more information on connectivity and datasource, please refer to the documentation on- Connectivity & Datasources.

  5. Click on Save and start Querying.

adding-oracle

Query

Step 1: Query using a visual builder or query editor

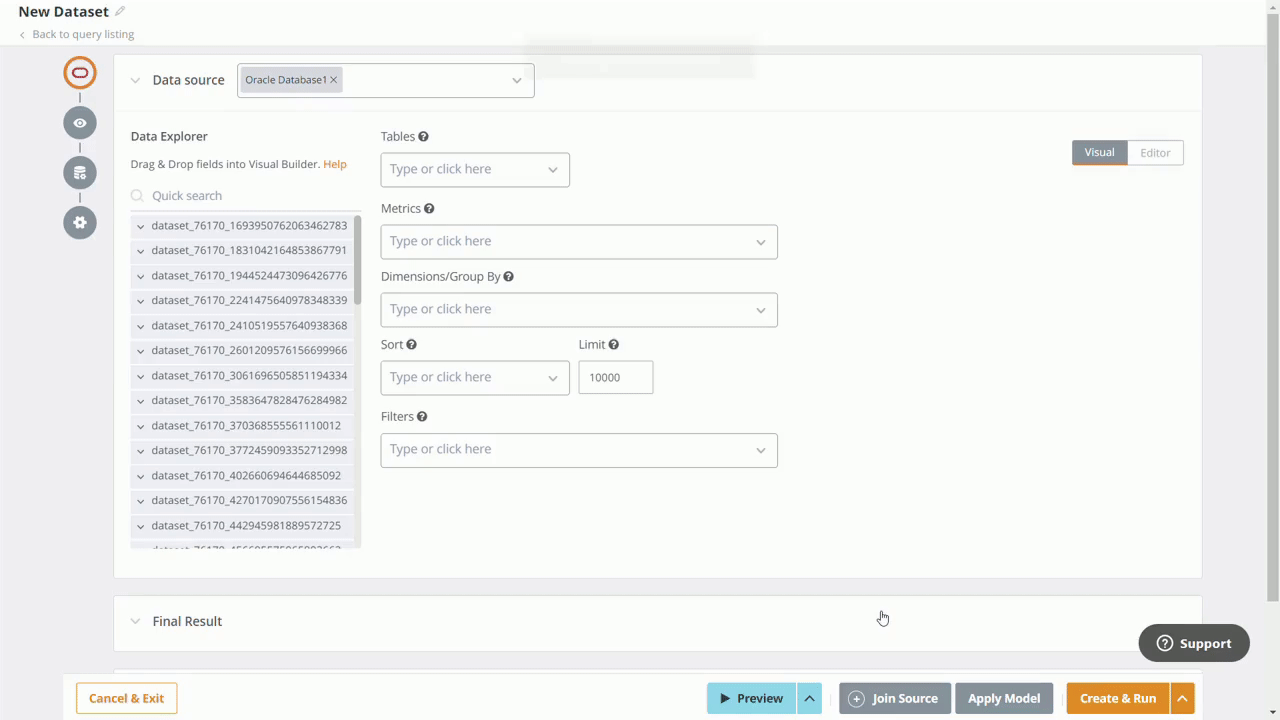

Visual Builder: After connecting to the Oracle datasource, Knowi will pull out a list of tables along with field samples. Using these tables, you can automatically generate queries through our visual builder in a no-code environment by either dragging and dropping fields or making your selections through the drop-down.

query-oracle

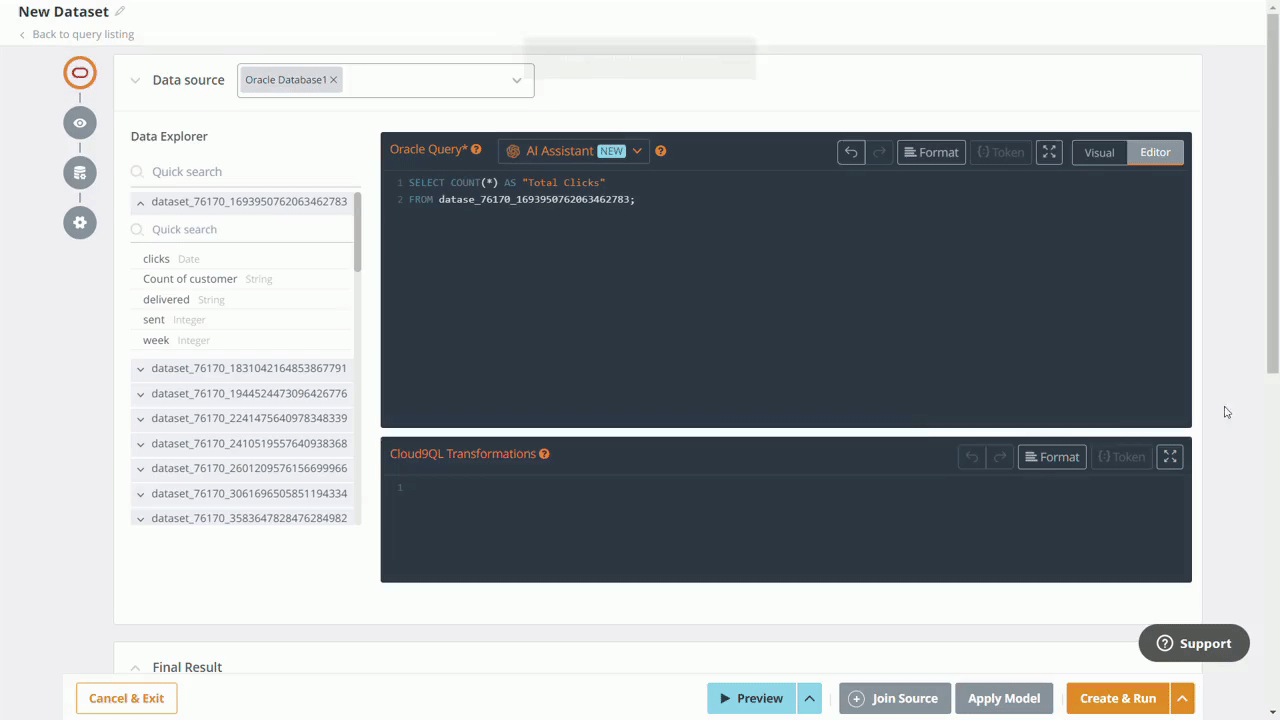

Tip: You can also write queries directly in the Query Editor, a versatile text editor that offers more advanced editing functionalities like Oracle Query, support for multiple language modes, Cloud9QL, and more.

Furthermore, you can also use the Format button in the query editor to auto-format the query text for indentation, spaces, and more.

format oracle

Step 2: Define data execution strategy by using any of the following two options:

  • Direct Execution: Directly execute the Query on the original Datasource, without any storage in between. In this case, when a widget is displayed, it will fetch the data in real time from the underlying Datasource.

  • Non-Direct Execution: For non-direct queries, results will be stored in Knowi?s Elastic Store. Benefits include- long-running queries, reduced load on your database, and more.

Non-direct execution can be put into action if you choose to run the Query once or at scheduled intervals. For more information, feel free to check out this documentation- Defining Data Execution Strategy

data-strategy

Step 3: Click on the Preview button to analyze the results of your Query and fine-tune the desired output, if required.

preview-query-results

The result of your Query is called Dataset. After reviewing the results, name your dataset and then hit the Create & Run button.

create-and-run

Cloud9Agent Configuration

As an alternative to the UI based connectivity above, you can use a Cloud9Agent inside your network to pull from Oracle securely.

Highlights:

  • Pull data using SQL.
  • Execute queries on a schedule, or, one time.

The agent contains a datasource_example_oracle.json and query_example_oracle.json under the examples folder of the agent installation to get you started.

  • Edit those to point to your database and modify the queries to pull your data.
  • Move it into the config directory (datasource_XXX.json files first if the Agent is running).

Datasource Configuration:

Parameter Comments
name Unique Datasource Name.
datasource Set value to oracle
url URL to connect to, where applicable for the datasource. Example for Oracle: localhost:1521:cloud9demo
userId User id to connect, where applicable.
Password Password, where applicable
userId User id to connect, where applicable.

Query Configuration:

Query Config Params Comments
entityName Dataset Name Identifier
identifier A unique identifier for the dataset. Either identifier or entityName must be specified.
dsName Name of the datasource name configured in the datasource_XXX.json file to execute the query against. Required.
queryStr Oracle SQL query to execute. Required.
frequencyType One of minutes, hours, days,weeks,months. If this is not specified, this is treated as a one time query, executed upon Cloud9Agent startup (or when the query is first saved)
frequency Indicates the frequency, if frequencyType is defined. For example, if this value is 10 and the frequencyType is minutes, the query will be executed every 10 minutes
startTime Optional, can be used to specify when the query should be run for the first time. If set, the the frequency will be determined from that time onwards. For example, is a weekly run is scheduled to start at 07/01/2014 13:30, the first run will run on 07/01 at 13:30, with the next run at the same time on 07/08/2014. The time is based on the local time of the machine running the Agent. Supported Date Formats: MM/dd/yyyy HH:mm, MM/dd/yy HH:mm, MM/dd/yyyy, MM/dd/yy, HH:mm:ss,HH:mm,mm
c9QLFilter Optional post processing of the results using Cloud9QL. Typically uncommon against SQL based datastores.
overrideVals This enables data storage strategies to be specified. If this is not defined, the results of the query is added to the existing dataset. To replace all data for this dataset within Knowi, specify {"replaceAll":true}. To upsert data specify "replaceValuesForKey":["fieldA","fieldB"]. This will replace all existing records in Knowi with the same fieldA and fieldB with the the current data and insert records where they are not present.

Datasource Example:

[
  {
    "name":"demoOracle",
    "url":"localhost:1521:cloud9demo",
    "datasource":"oracle",
    "userId":"cloud9demo",
    "password":"cloud92014"
  }
]

Query Examples:

[
  {
    "entityName":"Errors",
    "dsName":"demoOracle",
    "queryStr":"select error_condition as 'Error', count 'Count' from errors",
    "frequencyType":"minute",
    "frequency":10,
    "overrideVals":{
      "replaceAll":true
    }
  },
  {
    "entityName":"Queues",
    "dsName":"demoOracle",
    "queryStr":"select Name, size as 'Queue Size', Type from queue",
    "overrideVals":{
      "replaceValuesForKey":["Type"]
    },
    "startTime":"07:20",
    "frequencyType":"daily",
    "frequency":1
  }
]

The first query is run every 10 minutes at the top of the hour and replaces all data for that dataset in Knowi. The second is run once a day at 07:20 AM and updates existing data with the same Type field, or inserts new records otherwise.
