How to Build Multi-Tenant Embedded Analytics with Database-Per-Tenant Architecture: A Complete Tutorial

TL:DR

You don’t need one dashboard per customer, even if every customer has their own database.

By parameterizing the database connection at runtime, you can build one reusable dashboard template that dynamically routes queries to the correct customer database based on who’s logged in.

This works across Snowflake, PostgreSQL, MySQL, MongoDB, and more.

How it works, at a glance:

• Use runtime tokens (for example c9_dbname) in your datasource instead of hardcoding database names

• Assign token values per user or per group (UI or API)

• Embed the same dashboard for all tenants

• Choose:

  • SSO Embed API for full interactivity and saved user state

  • Secure URL Embed for fast, view-only dashboards


Result:
One dashboard. Hundreds or thousands of databases. Near-zero maintenance.

Table of Contents

The Challenge: One Dashboard, Hundreds of Databases

You’re building a SaaS product. Each customer has their own database, same schema, separate data. Now product wants analytics embedded in the app.

The naive approach: build a separate dashboard for each customer. With 10 customers, that’s manageable. With 1,000+? Impossible.

This tutorial shows you how to build one dashboard template that dynamically connects to the right database based on who’s logged in. No duplicate dashboards. No maintenance nightmare. Just clean, scalable multi-tenant embedded analytics.

What you’ll learn:

• How to parameterize database connections at runtime
• Two embedding approaches: SSO API vs Secure URL (and when to use each)
• Setting up drilldowns and filters that work across all tenants
• Assigning database credentials per user or group

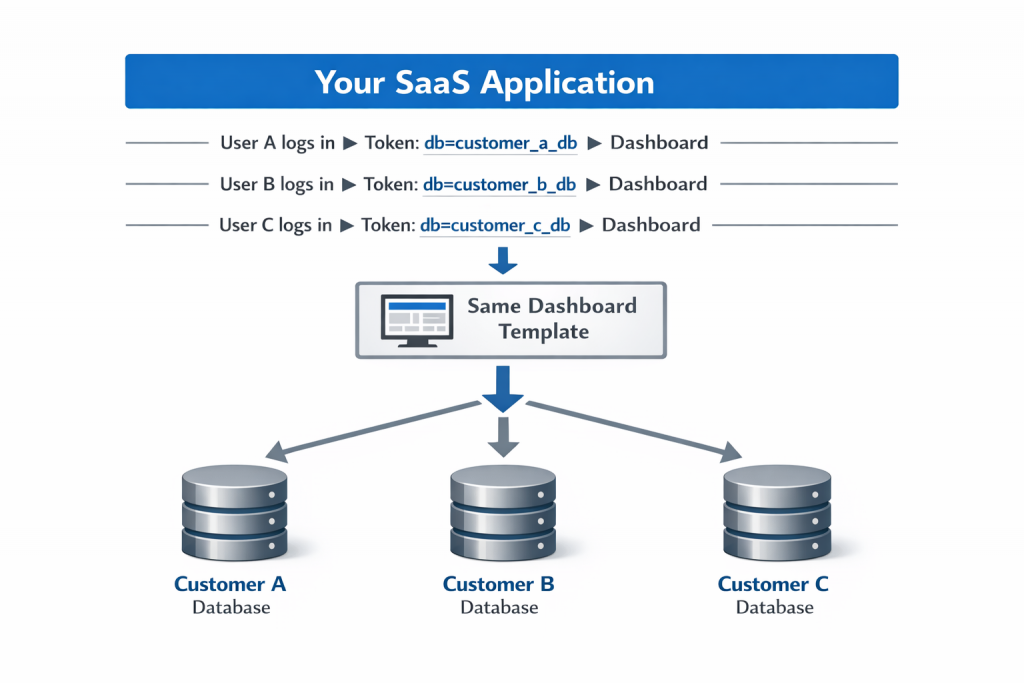

Architecture Overview

Here’s what we’re building:

The key insight: parameterized runtime tokens let you swap the database connection at query execution time, not dashboard design time.

Step 1: Create the Datasource with Runtime Parameters

First, create your datasource connection. But instead of hardcoding the database name, you’ll use a runtime token.

For Snowflake

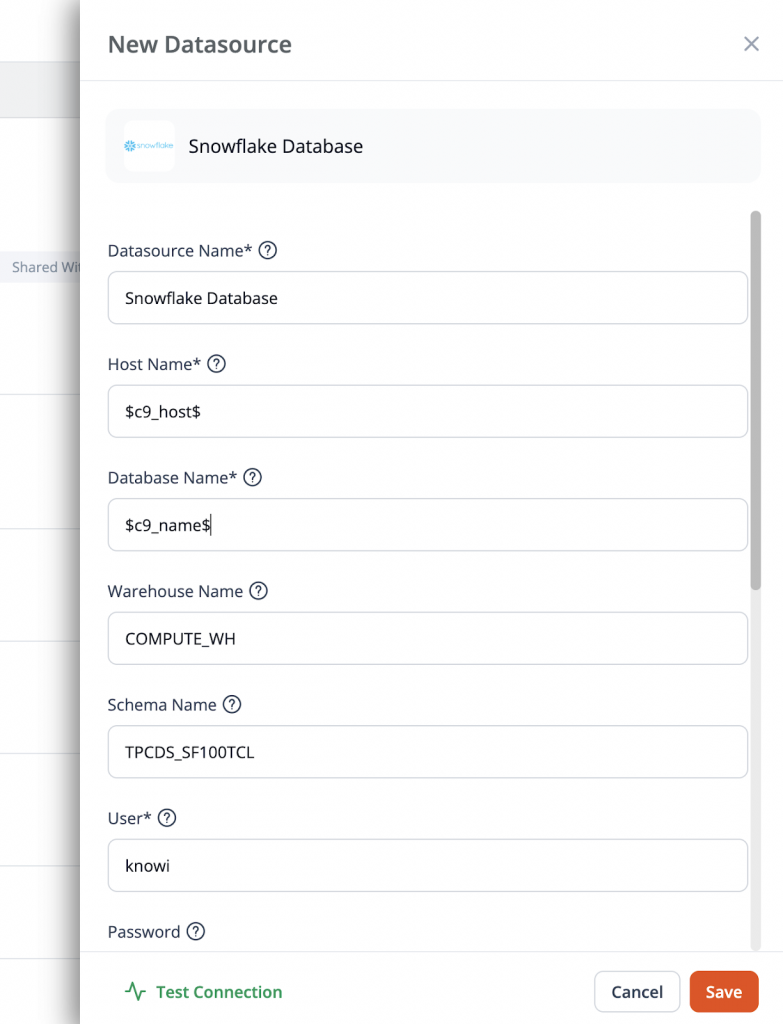

Navigate to Datasources → New Datasource → Snowflake.

In the database field, use a runtime parameter token. The syntax is: c9_TOKENNAME

For example, use $c9_database$ or $c9_dbname$ as the database name.

Full connection string example:

• Account: your-account.snowflakecomputing.com
• Database: c9_database (this is the runtime token)
• Schema: public (or parameterize with c9_schema)
• Warehouse: COMPUTE_WH
• Username/Password: Your service account credentials

For PostgreSQL/MySQL

Same concept, parameterize the database name in the JDBC URL:

jdbc:postgresql://your-host:5432/$c9_database$

For MongoDB

mongodb://username:password@host:27017/$c9_database$

Why this works: The runtime token (e.g., c9_database) gets replaced at query execution time with the value assigned to the logged-in user. The datasource itself doesn’t “know” which database it’s connecting to until the query runs.

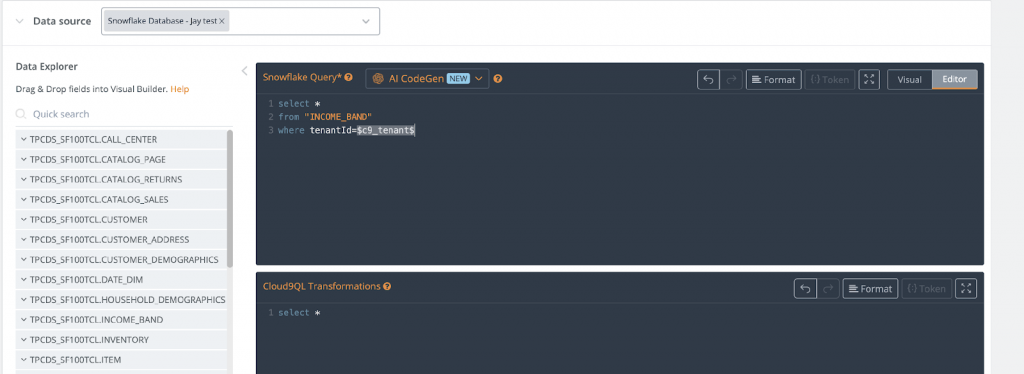

Step 2: Create Queries with Runtime Parameters

Now create your queries. These will use the parameterized datasource and can include additional runtime filters.

Key point: The database token at the datasource level is hidden, users never see it or interact with it. It’s automatically populated based on their user/group configuration.

Step 3: Build the Dashboard Template

Create your dashboard with all the visualizations, drilldowns, and filters your customers need.

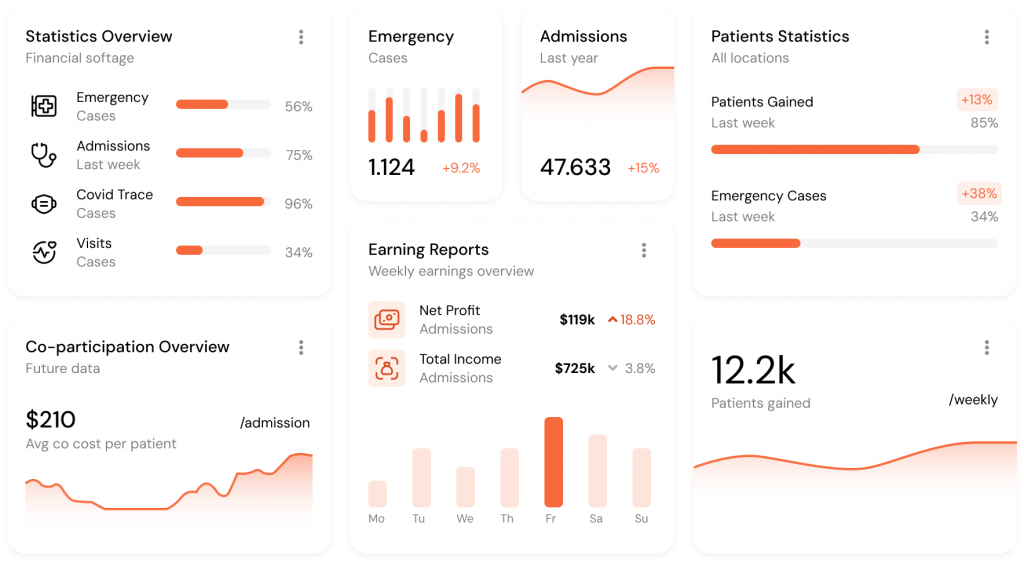

Figure 3: A healthcare analytics dashboard template. This same dashboard serves all tenants, each sees only their own data based on their database assignment.

Dashboard Components

1. Widgets: Add your charts, tables, KPIs
2. Filters: Create user-facing filters (date ranges, categories, etc.)
3. Drilldowns: Configure click-through navigation between widgets

Setting Up Drilldowns

Drilldowns let users click on a chart element to see detailed data. Configure these at the widget level:

1. Click widget settings → Drilldowns
2. Select the source field (e.g., “region”)
3. Choose the target widget or dashboard
4. Map the field to the target’s filter

Since you’re using runtime parameters, drilldowns work identically across all tenants. The underlying database is different, but the query structure is the same.

Filter Configuration

For user-facing filters (not the hidden database parameter):

1. Add filters to your dashboard
2. Link them to the runtime parameters in your queries
3. Optionally, configure filter suggestions from a lookup dataset

Step 4: Assign Runtime Parameter Values to Users

Here’s where the magic happens. You assign the database token value to each user or group. You can do this through the UI or programmatically via API.

Option A: Via the UI (User-Level Assignment)

Navigate to Settings → Team → Users → Edit User

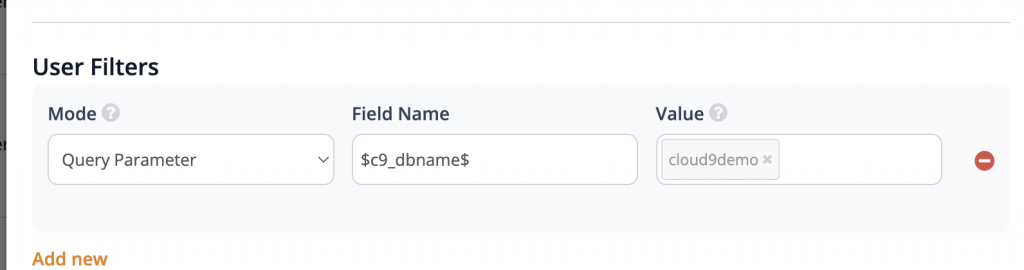

In the User Filters section: – Mode: Query Parameter – Field Name: c9_dbname (matches the token name in your datasource/query, without the dollar signs) – Value: customer_a_production

Now when this user views the dashboard, all queries automatically route to customer_a_production.

Option B: Via the UI (Group-Level Assignment)

For larger deployments, assign at the group level:

Navigate to Settings → Team → Groups → Edit Group

Add the filter with the same configuration: – Mode: Query Parameter – Field Name: c9_dbname – Value: customer_a_production

All users in this group inherit the database assignment. This is ideal when you have multiple users per tenant.

Option C: Via SSO API (Programmatic)

For fully automated deployments where you’re embedding analytics in your own application, pass the token value programmatically when creating the SSO session. This is the recommended approach for production SaaS applications.

Step 1: Create or update the user with their database assignment

curl -X POST https://www.knowi.com/sso/user/create \
  -H “Content-Type: application/x-www-form-urlencoded” \
  -d “user=customer_a_user@example.com” \
  -d “ssoCustomerToken=YOUR_SSO_TOKEN” \
  -d “userGroups[]=Customer_A” \
  -d “refresh=true” \
  -d ‘contentFilter=[{“fieldName”:”c9_dbname”,”values”:[“customer_a_production”],”operator”:”=”}]’

Parameters explained:

• user: The email address for this embedded user
• ssoCustomerToken: Your Knowi SSO token (found in Settings → SSO)
• userGroups[]: Groups this user belongs to (controls dashboard access)
• refresh: Set to true to update existing user’s filters
• contentFilter: JSON array specifying runtime parameter values

Step 2: Create a session token for embedding

curl -X POST https://www.knowi.com/sso/session/create \
  -H “Content-Type: application/x-www-form-urlencoded” \
  -d “user=customer_a_user@example.com” \
  -d “userToken=TOKEN_FROM_STEP_1”

The response is a session token you use in your embed code.

Full API workflow in Node.js:

const axios = require(‘axios’);

async function createEmbedSession(userEmail, tenantDatabase) {
 // Step 1: Create/update user with their database filter
  const userResponse = await axios.post(
    ‘https://www.knowi.com/sso/user/create’,
    new URLSearchParams({
      user: userEmail,
      ssoCustomerToken: process.env.KNOWI_SSO_TOKEN,
      ‘userGroups[]’: ‘Embedded_Users’,
      refresh: ‘true’,
      contentFilter: JSON.stringify([
        { fieldName: ‘c9_dbname’, values: [tenantDatabase], operator: ‘=’ }
      ])
    })
  );

  const userToken = userResponse.data;

  // Step 2: Create session token
  const sessionResponse = await axios.post(
    ‘https://www.knowi.com/sso/session/create’,
    new URLSearchParams({
      user: userEmail,
      userToken: userToken
    })
  );

  return sessionResponse.data; // Use this in your embed code
}

// Usage: when a tenant logs into your app
app.get(‘/analytics’, async (req, res) => {
  const sessionToken = await createEmbedSession(
    req.user.email,
    req.user.tenantDatabase  // e.g., “acme_corp_db”
  );
  res.render(‘analytics’, { sessionToken });
});

Step 5: Choose Your Embedding Approach

You have two main options for embedding the dashboard. Each has trade-offs.

Option 1: SSO Embed API (Full Interactivity)

Best for: Users who need to save custom views, create their own filters, or interact deeply with the analytics.

How it works:

1. Your backend authenticates the user
2. You call Knowi’s SSO API to create/retrieve a user token
3. You create a session token 4. Embed using the session token

Backend code (Node.js example):

const axios = require(‘axios’);

async function getKnowiSession(userEmail, customerDatabase) {
  // Step 1: Create or get user token
  const userResponse = await axios.post(‘https://www.knowi.com/sso/user/create’, {
    user: userEmail,
    ssoCustomerToken: process.env.KNOWI_SSO_TOKEN,
    userGroups: [‘Embedded_Users’],
    refresh: true,
    contentFilter: JSON.stringify([
      { fieldName: ‘database’, values: [customerDatabase], operator: ‘=’ }
    ])
  });

  const userToken = userResponse.data;

  // Step 2: Create session token
  const sessionResponse = await axios.post(‘https://www.knowi.com/sso/session/create’, {
    user: userEmail,
    userToken: userToken
  });

  return sessionResponse.data; // This is the session token
}

Frontend embed:

Knowi.render(‘#analytics-container’, {
  type: ‘single’,
  token: sessionToken, // From your backend
  url: ‘https://www.knowi.com/’,
  view: {
    title: true,
    header: false,
    filter: true,
    dashListIcon: false
  }
}, function() {
  console.log(‘Dashboard loaded’);
});

What persists: Any changes the user makes (custom filters, saved views) are stored against their Knowi user account.

Option 2: Secure URL Embed (View-Only)

Best for: Read-only dashboards where you don’t need user-specific persistence.

How it works:

1. Generate an encrypted hash containing the content filters (including database)
2. Embed using the secure URL with the hash

Key difference: No Knowi user account is created. The dashboard is view-only. Filter selections don’t persist between sessions.

Backend code:

const crypto = require(‘crypto’);

function generateSecureHash(customerDatabase, ttlSeconds = 3600) {
  const params = {
    contentFilters: [
      { fieldName: ‘database’, values: [customerDatabase], operator: ‘=’ }
    ],
    _t: Date.now(),
    _ttl: ttlSeconds
  };

  const payload = JSON.stringify(params);

  // AES encrypt with your customer key (contact Knowi support for this)
  const cipher = crypto.createCipheriv(‘aes-256-cbc’,
    process.env.KNOWI_ENCRYPTION_KEY,
    process.env.KNOWI_ENCRYPTION_IV
  );

  let encrypted = cipher.update(payload, ‘utf8’, ‘base64’);
  encrypted += cipher.final(‘base64’);

  return encrypted;
}

Frontend embed:

Knowi.render(‘#analytics-container’, {
  type: ‘secure’,
  hash: secureHash, // From your backend
  dashboard: ‘YOUR_DASHBOARD_SHARE_KEY’,
  view: {
    title: true,
    header: false,
    filter: true
  }
}, function() {
  console.log(‘Dashboard loaded’);
});

Comparison: SSO vs Secure URL

Step 6: Test Your Multi-Tenant Setup

Before going live, verify the isolation:

Test 1: Cross-Tenant Data Isolation

1. Log in as User A (assigned to customer_a_db)
2. Verify you see only Customer A’s data
3. Log in as User B (assigned to customer_b_db)
4. Verify you see only Customer B’s data
5. Confirm there’s no data leakage

Test 2: Query Execution

Enable query logging to verify the correct database is being used:

1. Open browser developer tools
2. Watch the network requests
3. Confirm the query is executing against the expected database

Test 3: Filter Persistence (SSO only)

1. Apply a custom filter as User A
2. Log out and log back in
3. Verify the filter persists for User A
4. Log in as User B
5. Verify User B has their own filter state (or defaults)

Real-World Example: 1,000+ Snowflake Databases

One of our customers runs a B2B SaaS platform where each of their customers has a dedicated Snowflake database. Same schema across all 1,000+ databases. Different data.

Their setup:

• Datasource: Snowflake with $c9_database$ token
• Queries: 15 queries powering 8 dashboard widgets
• Embedding: SSO API integrated with their auth system
• User management: Automated via API when new customers onboard

The workflow:

1. New customer signs up for their platform
2. Their backend provisions a new Snowflake database
3. Their backend calls Knowi SSO API to create a user group with database filter set to the new database name
4. Customer logs in → sees their data in the embedded dashboard

Maintenance overhead: Near zero. They built the dashboard once. Adding a new customer = one API call.

Advanced: Parameterizing More Than Just Database

You can parameterize any part of the connection string:

Schema-Level Isolation

Use c9_schema (public)$ as the schema name.

Useful when all customers share a database but have separate schemas.

Full Connection String

For PostgreSQL with fully dynamic host, port, and database:

jdbc:postgresql://$c9_host$:$c9_port$/$c9_database$

Each token (c9_host, c9_port, c9_database) can be assigned different values per user.

Multiple Runtime Filters

Combine database isolation with row-level security in your queries:

SELECT * FROM orders
WHERE tenant_id = $c9_tenant_id$
  AND region IN ($c9_regions${list|’|,}$)

Common Pitfalls and How to Avoid Them

Pitfall 1: Forgetting to Set Default Values

If a user doesn’t have a database filter assigned and you don’t set a default, queries will fail.

Fix: Either set a default value in the token (e.g., c9 database(default_db)$) or ensure all users have the filter assigned before they access the dashboard.

Pitfall 2: Caching Issues

Query results may be cached. If you’re testing with different database values, you might see stale data.

Fix: Clear the cache when testing, or use the “Refresh” option on the dashboard.

Pitfall 3: SSO Token Expiry

SSO session tokens expire. If your embedded dashboard suddenly stops working, this might be why.

Fix: Implement token refresh logic in your backend. Call /sso/session/keepAlive to extend sessions, or create new sessions as needed.

Performance Considerations

Connection Pooling

With many databases, connection management matters. Knowi maintains connection pools per datasource configuration. Since your datasource uses a runtime parameter, connections are established per-database at query time.

Recommendation: For very large deployments (100+ databases), consider:

• Caching query results aggressively
• Using scheduled data refreshes instead of live queries
• Implementing a data warehouse that consolidates tenant data with proper isolation

Query Optimization

Since the same query runs across different databases, optimize once, benefit everywhere:

• Add indexes on filtered columns
• Use appropriate date partitioning
• Limit result sets with pagination

Summary: Your Multi-Tenant Embedded Analytics Checklist

• Create datasource with runtime parameter token (e.g., c9_database) in the database field
• Build queries using the parameterized datasource
• Design dashboard with filters and drilldowns
• Assign database values to users/groups (via UI or API)
• Choose embedding approach (SSO for full interactivity, Secure URL for view-only)
• Integrate embedding into your application
• Test cross-tenant data isolation
• Monitor and optimize performance

Next Steps

Ready to implement database-per-tenant embedded analytics?

1. Start a free trial – Get hands-on with the platform
2. Book a demo – Walk through your specific use case with our team
3. Read the SSO API docs – Deep dive into the technical details

Have questions about implementing this for your SaaS product? Contact our team.

Frequently Asked Questions.
