How to Connect Elasticsearch to BI Tools Without ODBC Drivers

TL;DR

ODBC drivers struggle with Elasticsearch because they translate SQL to query DSL, a lossy process that limits features, breaks complex aggregations, and sometimes filters client-side (downloading everything first). Better alternatives: native Elasticsearch analytics platforms (full query DSL support, no translation), data federation (query-time joins with SQL databases, no ETL), or optimized API integrations.

Table of Contents

Introduction

You have data in Elasticsearch.

Your business users want it in Power BI or Tableau.

The documented path is an ODBC driver.

Then reality hits: driver configuration issues, SQL translation limitations, performance problems and queries that work in Kibana but fail through ODBC.

There’s a better approach that doesn’t require ODBC at all.

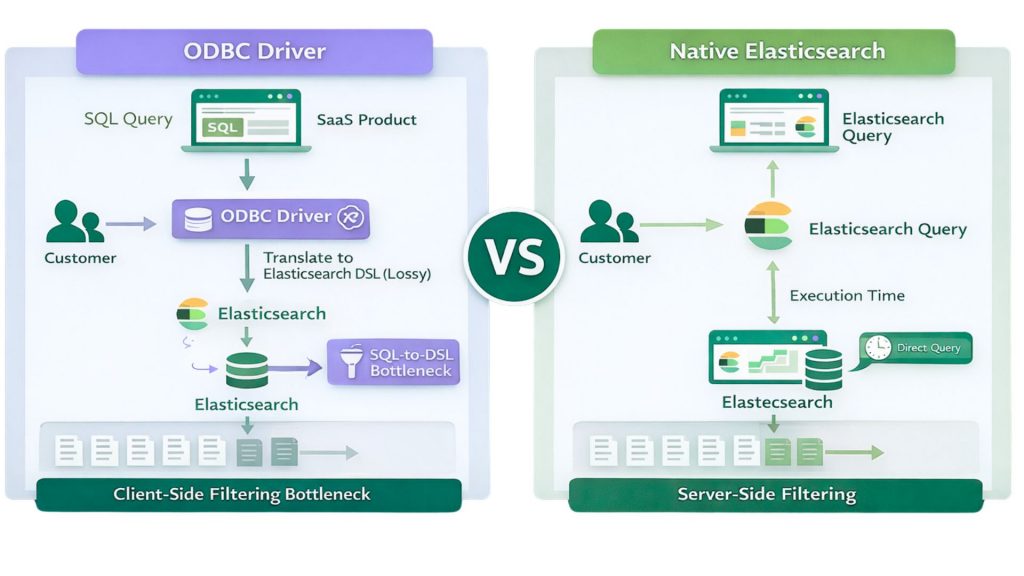

The ODBC Problem with Elasticsearch

Why ODBC Drivers Struggle with Elasticsearch

Elasticsearch isn’t a SQL database. ODBC drivers must translate SQL queries into Elasticsearch’s native query DSL. This translation creates fundamental limitations.

According to Elastic’s documentation:

The Elasticsearch ODBC driver enables SQL-based access, but with caveats:

1. Limited SQL support: Not all SQL operations translate cleanly to Elasticsearch
2. Aggregation constraints: Complex aggregations may not translate correctly
3. Performance overhead: SQL → ES Query DSL translation adds latency

Common Issues Users Report

From Elastic community forums:

• Driver installation and configuration complexity
• Connection timeouts with large datasets
• Queries that work in Kibana fail through ODBC
• Missing or incorrectly typed fields

From Microsoft Power BI community:

• No direct/native connector for Elasticsearch in Power BI
• ODBC driver must be downloaded and configured manually
• DirectQuery limitations affect real-time reporting

The Performance Tax

According to third-party connector documentation:

“WHERE clause, LIMIT keyword will be performed on the client side, meaning that the whole result set will be retrieved from the ElasticSearch API first, and only then the filtering will be applied.”

Translation: Your “filtered” query downloads everything, then filters locally. With large Elasticsearch indices, this is untenable.

The Three Alternatives to ODBC

Option 1: Native Elasticsearch Analytics Platforms

Instead of translating SQL to Elasticsearch, use tools that speak Elasticsearch natively.

How it works:

• Connect directly to Elasticsearch using native APIs
• Build dashboards using Elasticsearch query DSL
• Embed dashboards in your applications or share with business users

Advantages:

• Full Elasticsearch feature support (aggregations, nested fields, geo queries)
• No SQL translation overhead
• Real-time performance
• Support for complex Elasticsearch-specific operations

// Native Elasticsearch query - full power, no translation
{
  "aggs": {
    "significant_terms": {
      "significant_terms": {
        "field": "error.type.keyword",
        "background_filter": {
          "range": { "@timestamp": { "gte": "now-30d" } }
        }
      }
    }
  }
}

For a comparison of native Elasticsearch analytics tools, see Best Tools for Elasticsearch Analytics: Kibana vs Knowi vs Grafana.

Step-by-Step: Connect Elasticsearch to a Native Analytics Platform

Step 1: Add Elasticsearch as a datasource

In your analytics platform, navigate to Datasources and create a new connection:

Type: Elasticsearch
Host: your-cluster.es.amazonaws.com
Port: 9243
Authentication: API Key or Username/Password

Test the connection to verify access.

Step 2: Select indices and build your first query

Choose the Elasticsearch indices you want to analyze (e.g., logs-*, metrics-*). Use the visual query builder to:

1. Select your index pattern
2. Add filters (date range, field values)
3. Choose groupings (terms, date histogram)
4. Select metrics (count, average, sum, percentiles)

Or write native Elasticsearch JSON for advanced queries.

Step 3: Create visualizations

Map your query results to chart types:

• Time series for trends over time (latency, error rates)
• Bar charts for categorical breakdowns (errors by status code)
• Tables for detailed record views
• Geo maps for location-based data

Step 4: Assemble a dashboard

Combine multiple visualizations into an interactive dashboard:

1. Add widgets from your saved queries
2. Configure cross-widget filtering (click a bar to filter all charts)
3. Add date range and field filters
4. Set auto-refresh intervals for real-time data

Step 5: Share or embed

Distribute your dashboard to users:

• Direct link – users log in and view in browser
• Embedded – generate an embed token and integrate into your app
• Scheduled export – automated PDF/CSV delivery via email

Option 2: Data Federation (Query-Time Joins)

If your business users need Elasticsearch data alongside SQL data, federation platforms query both at runtime without ETL.

How it works:

• Connect to Elasticsearch and SQL databases simultaneously
• Write queries that join across both
• No data copying or synchronization pipelines

-- Join Elasticsearch logs with MySQL customer data at query time
SELECT
  es.event_type,
  es.timestamp,
  mysql.customer_name,
  mysql.plan_tier
FROM elasticsearch.events es
JOIN mysql.customers mysql ON es.customer_id = mysql.id
WHERE es.timestamp > NOW() - INTERVAL 7 DAY

Advantages:

• No ETL pipeline to build and maintain
• Data stays in source systems
• Always query current data
• Join Elasticsearch with any SQL database

See How to Join Elasticsearch with Other Datasources for implementation details.

Option 3: API-Based Integration

Build custom integrations using Elasticsearch’s REST API directly.

How it works:

• Query Elasticsearch via REST API
• Transform results in middleware
• Load into Power BI via custom connector or dataflows

# Custom Python script for Power BI dataflow
from elasticsearch import Elasticsearch

es = Elasticsearch(['https://your-cluster:9243'])

result = es.search(
    index="logs-*",
    body={
        "query": {"range": {"@timestamp": {"gte": "now-7d"}}},
        "aggs": {
            "by_status": {"terms": {"field": "status.keyword"}}
        }
    }
)

# Transform to tabular format for Power BI
# Write to CSV/JSON/database for Power BI import

Advantages:

• Full control over query and transformation
• No driver limitations
• Can handle complex Elasticsearch operations

Disadvantages:

• Requires development and maintenance
• Need to build refresh automation
• Security and credential management

Comparison: ODBC vs Native vs Federation

When to Use Each Approach

Stay with ODBC If:

• You have simple, small-scale Elasticsearch queries
• Your team is committed to Power BI/Tableau ecosystem
• Queries don’t need advanced Elasticsearch features
• Performance isn’t critical

Use Native Elasticsearch Platforms If:

• You need full Elasticsearch query capabilities
• Real-time dashboards are important
• You’re embedding analytics in your application
• Business users need self-service on Elasticsearch data

Use Data Federation If:

• You need to join Elasticsearch with SQL databases
• ETL pipelines are too slow or complex
• Data must stay in source systems (compliance)
• You have multiple data sources beyond Elasticsearch

Practical Migration: Power BI to Native Platform

Step 1: Identify Query Patterns

Review your Power BI reports using Elasticsearch:

• What aggregations are used?
• What filters are applied?
• What’s the refresh frequency requirement?
• Do you need joins with other data sources?

Step 2: Recreate Dashboards

In a native Elasticsearch platform:

1. Connect Elasticsearch

Host: your-cluster.es.amazonaws.com
Port: 9243
Auth: API Key
Indices: logs-*, metrics-*

2. Build visualizations using native queries

• Drag-and-drop for simple aggregations
• Native Elasticsearch JSON for complex queries

3. Configure filters and interactions

• Date range selectors
• Field filters
• Cross-widget filtering

Step 3: Share with Business Users

Options:

• Direct access: Business users log in to dashboard
• Embedded: Dashboards embedded in your internal portal
• Scheduled exports: PDF/CSV reports delivered via email

Step 4: Retire ODBC Connection

Once dashboards are validated:

• Decommission ODBC driver configuration
• Remove Power BI Elasticsearch connections
• Redirect users to new dashboards

Power BI Alternatives for Elasticsearch

If Power BI’s Elasticsearch integration isn’t meeting needs, consider:

For a detailed comparison, see Grafana vs Kibana vs Knowi.

Elasticsearch + Power BI: Making It Work

If you must use Power BI with Elasticsearch, optimize the ODBC approach:

1. Use Import Mode, Not DirectQuery

DirectQuery hits Elasticsearch for every interaction. Import mode: – Loads data into Power BI’s engine – Faster report interactions – Schedule refreshes for updates

Limitation: Data is only as fresh as your last refresh.

2. Pre-Aggregate in Elasticsearch

Create summary indices for BI queries:

// Create daily summary index
PUT /metrics-daily-summary/_doc/2024-01-15
{
  "date": "2024-01-15",
  "total_requests": 1523456,
  "error_count": 234,
  "avg_latency_ms": 45.2,
  "by_status": {
    "200": 1400000,
    "404": 100000,
    "500": 23456
  }
}

Query summary indices instead of raw logs.

3. Limit Query Scope

Add explicit filters to prevent full-index scans:

-- Always include date range
SELECT status, COUNT(*)
FROM "logs-*"
WHERE @timestamp > '2024-01-01'
  AND @timestamp < '2024-01-31'
GROUP BY status

4. Consider Third-Party Connectors

Vendors like CData offer enhanced ODBC drivers with:

• Better DirectQuery support
• Optimized query translation
• Caching layers

Trade-off: Additional licensing cost.

The Bottom Line

ODBC drivers translate SQL to Elasticsearch queries, a lossy process that limits features and hurts performance. For serious Elasticsearch analytics:

1. Native platforms give you full Elasticsearch power without translation
2. Data federation enables cross-source joins without ETL
3. Optimized ODBC can work for simple use cases with careful configuration

The right choice depends on your query complexity, real-time requirements, and whether you need to join Elasticsearch with other sources.
